Cooling unit Canaletas GF

Undercounter water cooler SERIES GF

Cooling unit with multiple applications. For supplying cold water to fountains or taps.

  • Easy installation: under the sink or countertop, behind the wall, for recessed drinking fountains Canaletas Series EF and EN… etc.
  • Wherever a cooling unit is to be installed, separated from the water access point.
  • Designed also for outdoors. Can be connected to Canaletas Series J drinking fountain for gardens or school playgrounds.
  • Designed for connection of the upper section (factory standard) or rear section of the cooling unit.
  • Superior quality and cooling capacity.
  • Made entirely from stainless steel.
  • Cold water temperature adjustable by thermostat.
  • Possibility of emptying the tank for greater hygiene.


Models


GF-6T
Height: 567mm
Compact model for countertop installation.

GF-86T
Height: 645mm
Superior cooling capacity.



Conform to electrical safety standards
Conform to sanitation standards
Conform to 98/83/EC standard
ModelsGF-6TGF-86T
COOLING POWER (W)400600
POWER CONSUMPTION (W)200230
VOLTAGE 230 V 50 Hz single-phase (A) (Consult other options)0,91,1
COOLING CAPACITY (l/h)3550
WATER TANK CAPACITY (l)4,54,5
WATER OUTPUT TEMPERATURE (ºC)4-114-11
REFRIGERANT GAS(CFC - free)R290R290
DIMENSIONS (cm). Height x Width x Depth57x34x3465x34x34
WEIGHT (kg)2224,5

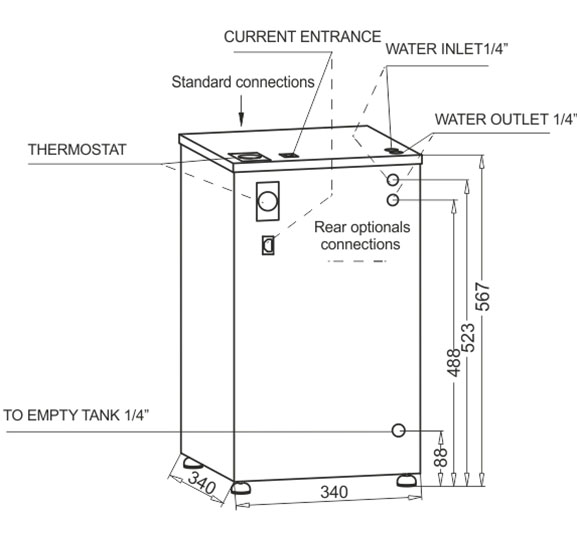

Model GF-6T

minicool-plano

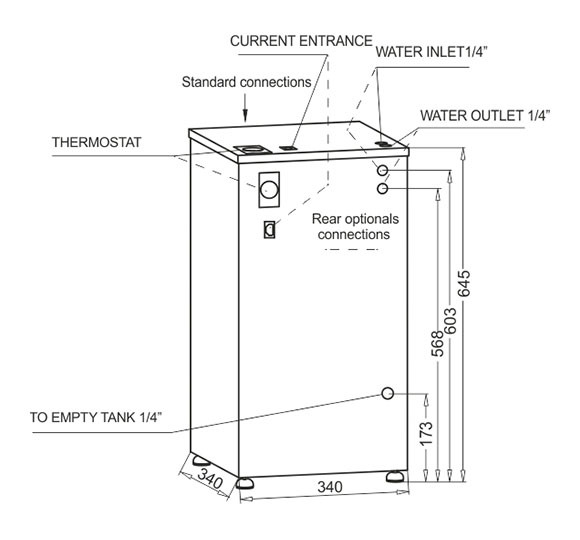

Model GF-68T

minicool-plano

PURIFICATION FILTERS

Canaletas recommends using an active carbon filter to enjoy a high quality of drinking water. This filter removes bad tastes and odors that may be present in the water, such as chlorine and small particles or organic material.


Models


GAC FILTER
This single unit filter is ideal for POU water coolers. These coolers are normally used with drinking cups and therefore the quantity of water consumed is usually less.

RECOMENDATION
Canaletas recommends changing the GAC filter once a year, especially before the summer season, but the frequency may need to be higher depending on water quality or the level of usage .


ULTRAVIOLET (UV) WATER FITLERS



Models


UV ULTRAVIOLET FILTERS
Designed to kill/inactivate 99.9% of harmful bacteria (i.e. Coliforms, Faecal & E. Coli),virus, Fungi Algae such as hepatitis, influenza, Legionella and other possible microorganisms. Its use is recommended when the amount of chlorine in the water is very low, poorly controlled waters or in environments with increased risk of infections.
Output: 6 watts. Sterilization capacity of up to 4 liters per minute.
With an approximate life of 6,000 hours. The color changing head light indicates the need to change the lamp. The UV lamp is replaced very easily by simply unscrewing the top of the head.


THREE WAY FAUCET HEAD

An elegant faucet that replaces the standard swan neck tap included with the minicooler.
This system builds on the existing plant for the current faucet, replacing it, without having to make holes in the sink or countertop. The levers allow you to select hot water, cold water, natural unfiltered and filtered water.



After Sales Service

Canaletas After Sales Service or an authorized distributor, can offer a complete maintenance of the water cooler including the CANVAP sanitation system.


What is sanitation ?

pdf Download pdf  Request information
