Canaletas Fuentes y dispensadores de agua

Nuevo
Drinking Fountain Canaletas Hands-Free  M-2APE
Drinking Fountain Canaletas Hands-Free  M-6ALVPE
Drinking Fountain Canaletas Hands-Free  M-6AOP
Drinking Fountain Canaletas Hands-Free  M-6APE
Drinking Fountain Canaletas Hands-Free  M-6APEMV
Drinking Fountain Canaletas Hands-Free  M-8APE

Hands-Free Drinking Fountains

To drink from the water jet or fill up bottles only by pressing the pedal or standing in front of the sensor. Hands free models - a safe and hygienic solution.


  • Ideal for any kind of situation that requires a robust and durable drinking fountain.
  • Models activated with a large, robust stainless steel pedal or automatically by a remote sensor control for greater convenience.
  • Made entirely from stainless steel, including the internal chassis.
  • Drinking fountains with larger dimensions, providing high stability and durability
  • Increased hygienic protection for the water jet through a special shell with anti-vandalism shield.The LV model is designed for filling small bottles or cups using the pedal.
  • The water jet height can be easily regulated using the high precision membrane valve.
  • The installation of a purification filter is recommended for better water quality.


Models

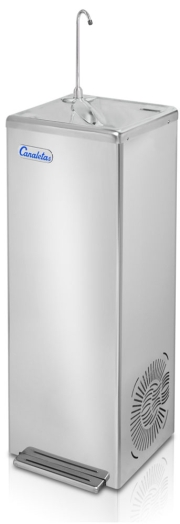

M-6ALVPE (Series 6)
Cold water cup filler operated by pedal (PE).
For filling small bottles or cups.

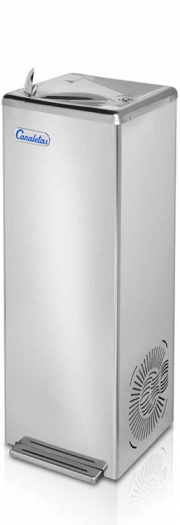

M-6APE (Series 6)
Cold water jet operated by pedal (PE).

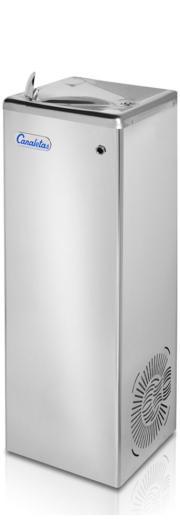

M-6AOP (Series 6)
Cold water jet operated by proximity detector (OP).
Ideal for the food industry.

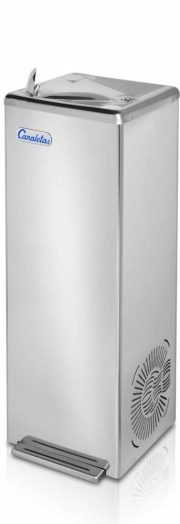

M-2APE (Non- cooling)
Room temperature water jet operated by pedal (PE).

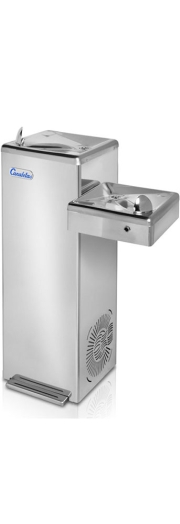

M-6APEMV (Series 6)
Cold water jet operated by pedal (PE).
Disabled Accessory (MV): Proximity sensor.

M-8APE (Series 8)
Swan-neck operated by pedal (PE) for cold water.
For filling bottles or pitchers.


Conform to electrical safety standards
Conform to sanitation standards
Conform to 98/83/EC standard




 Series 6Series 8
COOLING POWER (W)400600
POWER CONSUMPTION (W)200230
VOLTAGE 230 V 50 Hz single-phase (A) 0.91.1
COOLING CAPACITY (l/h)3550
WATER OUTPUT SPEED (l/h)60360
WATER TANK CAPACITY (l) (Optional: stainless steel direct chill)4,57,5
WATER OUTPUT TEMPERATURE (ºC) (Regulated by thermostat)4 - 114 - 11
REFRIGERANT GAS (CFC - Free)R290R290
WEIGHT (kg) / M-6APEMV26 / 4031

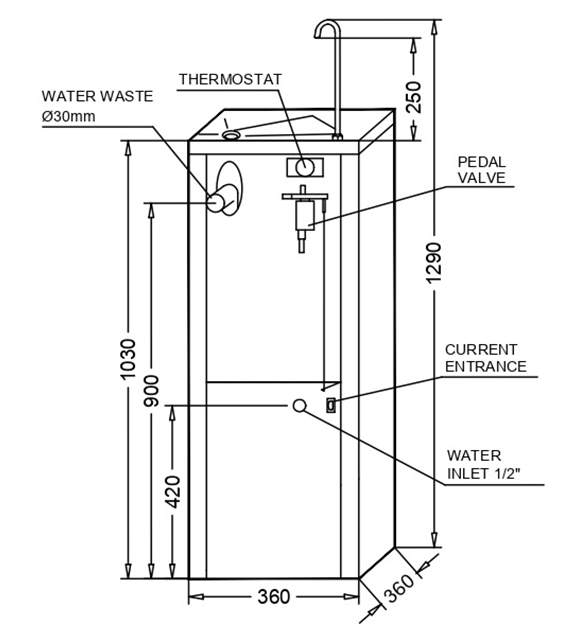

Series 6 Hands-free

Series 6 Disabled Hands-free

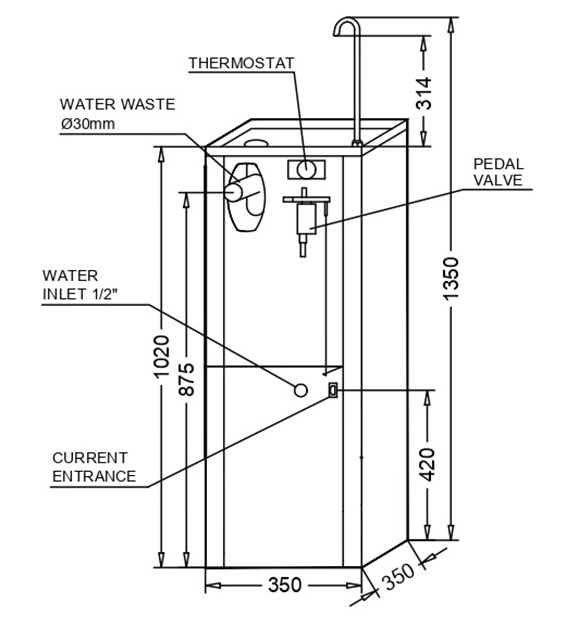

Series 8 Hands-free

FILTROS DEPURADORES

Se recomienda la utilización de un filtro depurador de carbón activo para obtener un agua en óptimas condiciones, gracias a la eliminación de los malos sabores y olores como el del cloro y las pequeñas partículas o contaminantes orgánicos que pudieran estar presentes en el agua.


Modelos


M-105
Filtro depurador de plástico y cartucho C-115
Presión máxima 8 Kg. / cm³
Conexión de agua de ½ pulgada.


CARTUCHO RECAMBIO
Cartucho de recambio para filtro M-105
Cartucho especialmente seleccionado por Canaletas para las fuentes de instalación, por su calidad e idóneas prestaciones ya que se requiere una elevada capacidad de filtración.
Cartucho de carbón activo en bloque con una filtración de 5µm y capacidad de depuración de más de 22.000 litros de agua o durabilidad de 1 año.
Combina las funciones de un filtro de sedimentos, que elimina las pequeñas partículas que pudiera tener el agua, junto con las propiedades del carbón activo para posibles malos gustos y olores.
La capa prefiltrante de polipropileno alarga la vida útil del cartucho.
nsf-sello

RECOMENDACIÓN
Canaletas recomienda el cambio del cartucho del filtro depurador una vez al año, especialmente antes de la temporada de verano, pero la frecuencia puede ser mayor dependiendo de la calidad del agua y del grado de utilización.



Servicio Técnico Canaletas

Para tener las fuentes siempre en perfecto estado y facilitarle el cambio del cartucho, el Servicio Técnico de Canaletas o un distribuidor autorizado, cada temporada recuerdan a sus clientes la conveniencia de reemplazar el cartucho antiguo (1) .

Además, en determinadas zonas pueden ofrecerle el servicio de cambio de cartucho junto con una revisión completa e higienización de la misma, para disponer de la fuente en perfectas condiciones de uso.


¿ Qué es la higienización ?


(1) Para poder ofrecerle este servicio, es importante que nos facilite los datos de la fuente.
