Drinking Water Fountain Canaletas M-4A
Drinking Water Fountain Canaletas M-4ALV
Drinking Water Fountain Canaletas M-4SF

Drinking fountains SERIES 4

Wall mounted design water coolers, for attachment at any height.

  • Ideal for centres of education, suitable for any age of student.
  • Requires water supply, drainage and electrical connection.
  • Made externally and internally of A-304 stainless steel.
  • Great hygienic protection through the special shell with anti-vandalism finish.
  • Height of the water jet can be regulated through the high precision valve.
  • The separation between the push button and the water jet provides more comfort.
  • Easily regulated cold water temperature (thermostat).
  • Furthermore the possibility to drink with cups for the models with cup filler (LV).
  • The installation of a purification filter is recommended for better water quality.


Models


M-4A
Cold water jet operated by push button.

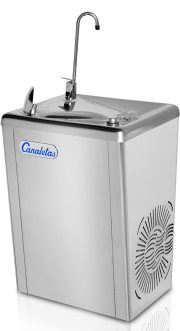

M-4ALV
Cold water jet operated by push button and cup filler (LV).
Cold water from both.

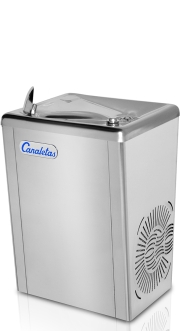

M-4SF
Ideal for children.
No cooling system.
Room temperature water jet operated by push button.


Conform to electrical safety standards
Conform to sanitation standards
Conform to 98/83/EC standard
COOLING POWER (W)350
POWER CONSUMTION (W)200
VOLTAGE 230V 50Hz single-phase (A) (Consult other options)0.9
COOLING CAPACITY (l/h) 30
WATER FLUX SPEED (l/h)60
WATER OUTPUT TEMPERATURE (ºC) (Regulate by thermostat)4-11
REFRIGERANT GAS (CFC - free)R290
WATER TANK CAPACITY (l) (Optional: stainless steel direct chill)4.5
WEIGHT (kg)23

Model M-4A

serie4-planom4amod

Model M-4ALV

serie4-planom4alvmod

PURIFICATION FILTERS

An active carbon water filter is recommended in order to obtain optimum water conditions, thanks to the elimination of bad tastes and smells like that of chlorine and small particles or contaminants that can be present in water.


Models


M-105
Plastic housing and cartridge C-115.
Maximum pressure 8 Kg. / cm³
½ inch water supply.

REPLACEMENT CARTRIDGE
Spare cartridge for filter M-105.
This cartridge is specially selected by Canaletas for its drinking fountains, for their high quality and performance because these fountains require a high filtering capacity.
Active carbon block cartridge with 5µm filtration and a working life of more than 22,000 liters of water or approx. 1-year duration.
Combines the functions of a sediment filter, that eliminates the small particles that could be in the water, along with the properties of active carbon for possible bad tastes and smells. The polypropylene pre-filtering layer extends the cartridge life.
nsf-sello

RECOMENDATION
Canaletas recommends changing the cartridge of the purification filter once a year, especially before summer, but it could be more often depending on water quality and degree of use.




After Sales Service

Canaletas After Sales Service or an authorized distributor, can offer a complete maintenance of the water cooler including the CANVAP sanitation system.


What is sanitation ?

pdf Download pdf  Request information
