Water cooler Canaletas HORECA GC-10A 4P
Water cooler Canaletas HORECA GC-10A 2P

Water cooler SERIES GC. HORECA sector

High-capacity water cooler, ideal for filling large bottles or carafes in restaurants, hotels or company`s canteen. Large-scale applications.
  • Provides continuous water cooling capacity of 100 litre/hour. *
  • Fully manufactured from stainless steel, including the internal chassis.
  • Coloured illuminated push-buttons made in stainless steel.
  • Two faucets for filling 2 bottles simultaneously.
  • Removable faucets for easy maintenance.
  • Front ventilation for easy and built-in installation.
  • Removable front panel for maintenance access.
  • Water inlet security valve.
  • Ice bank technology.
  • Ice bank tank water level alarm led indicator.
  • Water stainless steel coil.

Models


GC-10A 2P
Two buttons: cold water (available upon request)

GC-10A 4P
Four buttons: cold, room and mixed temperature water


Filters


Carbon block high capacity filter included
Consult the different filtration systems.

o
Conform to electrical safety standards
Conform to sanitation standards
Conform to 98/83/EC standard
*COOLING CAPACITY (l/h)100
COOLING POWER (W)1160
POWER CONSUMPTION (W) 650
COLD WATER OUTPUT TEMPERATURE (ºC)    4 - 11
ICE BANK (KG) / TANK CAPACITY (l) 10 / 24
COMPRESSOR POWER (HP/ Kcal/H)3 / 8 / 1030
DISPENSING AREA HEIGHT (cm)34
NET WEIGHT (kg) Model GC-10ª 4P57

Model GC Front

serie1-plano

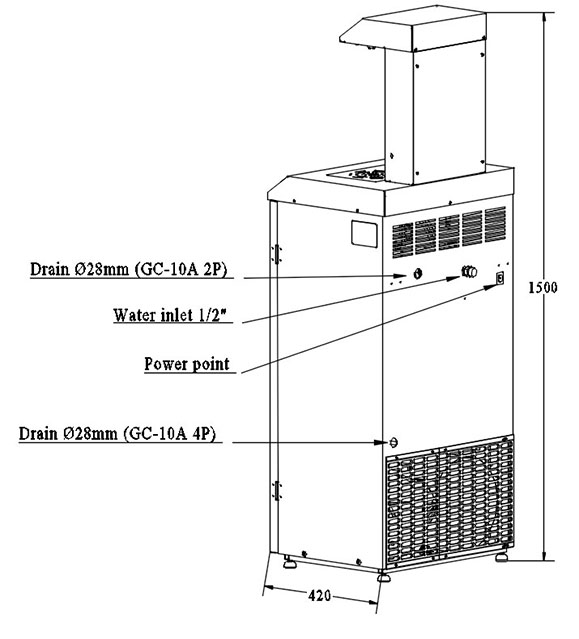

Model GC Side

serie1-plano

PURIFICATION FILTERS

An active carbon water filter is recommended in order to obtain optimum water conditions, thanks to the elimination of bad tastes and smells like that of chlorine and small particles or contaminants that can be present in water.


Models


M-105
Plastic housing and cartridge C-115.
Maximum pressure 8 Kg. / cm³
½ inch water supply.


REPLACEMENT CARTRIDGE
Spare cartridge for filter M-105.
This cartridge is specially selected by Canaletas for its drinking fountains, for their high quality and performance because these fountains require a high filtering capacity.
Active carbon block cartridge with 5µm filtration and a working life of more than 22,000 liters of water or approx. 1-year duration.
Combines the functions of a sediment filter, that eliminates the small particles that could be in the water, along with the properties of active carbon for possible bad tastes and smells. The polypropylene pre-filtering layer extends the cartridge life.
nsf-sello

RECOMENDATION
Canaletas recommends changing the cartridge of the purification filter once a year, especially before summer, but it could be more often depending on water quality and degree of use.




After Sales Service

Canaletas After Sales Service or an authorized distributor, can offer a complete maintenance of the water cooler including the CANVAP sanitation system.


What is sanitation ?

pdf Download pdf  Request information
