High-quality water dispensers, ideal for small bottles. Elegant, compact design, manufactured in highly durable stainless steel. Available with push buttons or illuminated electronic sensors for convenient, hygienic and safe use.

• Manufactured in stainless steel, a durable and 100% recyclable material.
• Ideal for filling small bottles or glasses.
• Available with push buttons or touch-free electronic sensors.
• Sensor system detects the container and prevents spills: water is only dispensed when a container is detected in front of the unit.
• Large-capacity, easily removable drip tray.
• Protected tap, separated from the controls for greater hygiene.
• Increased height for more ergonomic use.
• Efficient and hygienic cooling system using a coil.
• Water temperature easily adjustable by thermostat.
• Hands-free operation for greater safety and hygiene.

Models

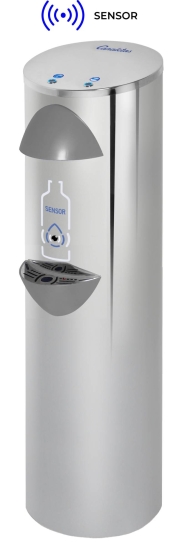

M-99IDOP
Two buttons: cold water and room temperature.
Both sensors: mixed water

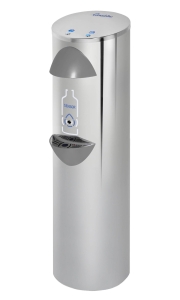

M-99IDPU
Two buttons: cold water and room temperature.
Both sensors: mixed water

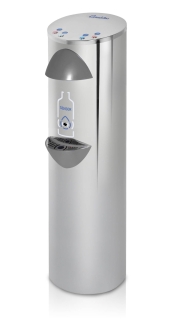

M-992IDPU
Four buttons: cold water, room temperature, hot water and security.
Both sensors: mixed water

Conform to electrical safety standards

Conform to sanitation standards

Conform to 98/83/EC standard

Technical Data Drawings Accessories COOLING POWER (W) 250 POWER CONSUMPTION (W) 100 VOLTAGE 230 V 50 Hz single-phase (A) (Consult other options) 0,5 COOLING CAPACITY IN CONTINUOUS (l/h) 22 WATER OUTPUT TEMPERATURE (ºC) (Regulated by thermostat) 4 - 11 MAXIMUM HOT WATER TEMPERATURE (ºC) (Regulated by thermostat) 85 HOT WATER TANK CAPACITY (only for cups) 1,2 STAINLESS STEEL COIL COOLING SYSTEM YES REFRIGERANT GAS (CFC-free) R290* WEIGHT (kg) 18 PURIFICATION FILTERS An active carbon water filter is recommended in order to obtain optimum water conditions, thanks to the elimination of bad tastes and smells like that of chlorine and small particles or contaminants that can be present in water.   Models GAC FILTER This single unit filter is ideal for POU water coolers. These coolers are normally used with drinking cups and therefore the quantity of water consumed is usually less.    RECOMENDATION Canaletas recommends changing the filter once a year, especially before the summer season, but the frequency may need to be higher depending on water quality or the level of usage .   ULTRAVIOLET (UV) WATER FILTERS   Models UV ULTRAVIOLET FILTER Designed to kill/inactivate 99.9% of harmful bacteria (i.e. Coliforms, Faecal & E. Coli),virus, Fungi Algae such as hepatitis, influenza, Legionella and other possible microorganisms. Its use is recommended when the amount of chlorine in the water is very low, poorly controlled waters or in environments with increased risk of infections. Output: 6 watts. Sterilization capacity of up to 4 liters per minute. With an approximate life of 6,000 hours. The color changing head light indicates the need to change the lamp. The UV lamp is replaced very easily by simply unscrewing the top of the head.     After Sales Service Canaletas After Sales Service or an authorized distributor, can offer a complete maintenance of the water cooler including the CANVAP sanitation system.   What is sanitation ?
