Drinking water fountains for tighter budgets, providing the essentials.
- Designed for any budget, providing the necessary basic requirements.
- Smaller dimensions than the series 6.
- Hygienic protection at the water outlet of the push button and dispenser.
- Easily regulated cold water temperature (thermostat).
- All models with a cup filler (LV).
- Maximum cooling performance, optimizing the high efficiency of R290 refrigerant gas.
- Requires a water inlet, drain and power socket.
- Entirely made of stainless steel, a highly durable material.
Models
T-76ALV To drink directly or fill up bottles (500ml).
Cold water jet, push button.

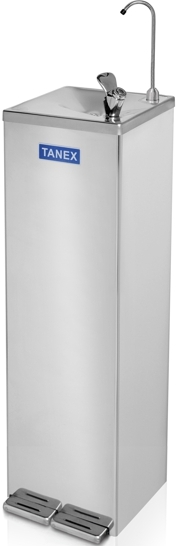

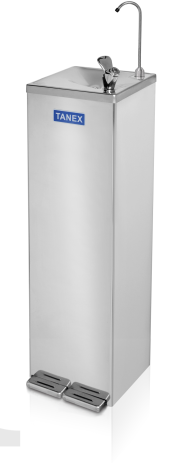

T-76ALV 2PE (Hands-free)To drink directly or fill up bottles (500ml).
Static cooling system (without fan).
Water jet operated by pedal (left) for cold water.
Cup filler operated by pedal (right) for cold water.
T-6ALV To drink directly or fill up bottles (500ml).
Cold water jet operated by push button.
Conform to electrical safety standards
Conform to sanitation standards
Conform to 98/83/EC standard
| SERIES | T - 76 | T - 6 | | COOLING POWER (W) | 350 | 350 | | POWER CONSUMPTION (W) | 200 | 200 | | VOLTAGE 230 V 50 Hz single-phase (A) (Consult other options) | 0.9 | 0.9 | | COOLING CAPACITY IN CONTINUOUS (l/h) | 30 | 30 | | WATER FLUX SPEED (l/h) | 60 | 60 | | WATER OUTPUT TEMPERATURE (ºC) (Regulated by thermostat) | 4-11 | 4-11 | | REFRIGERANT GAS (CFC - free) | R290 | R290 | | WATER TANK (l) (Optional: Direct chill cooling system) | 4,5 | 4,5 | | WEIGHT (kg) | 20 | 25 |
|

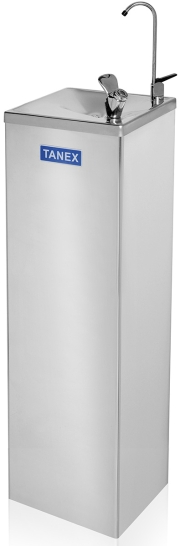

Model T-7ALV

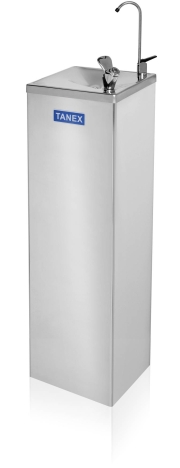

Model T-6ALV
|
PURIFICATION FILTERSAn active carbon water filter is recommended in order to obtain optimum water conditions, thanks to the elimination of bad tastes and smells like that of chlorine and small particles or contaminants that can be present in water. Models
M-105
Plastic housing and cartridge C-115.
Maximum pressure 8 Kg. / cm³
½ inch water supply. |  |
REPLACEMENT CARTRIDGE
Spare cartridge for filter M-105.
This cartridge is specially selected by Canaletas for its drinking fountains, for their high quality and performance because these fountains require a high filtering capacity. |  |
Active carbon block cartridge with 5µm filtration and a working life of more than 22,000 liters of water or approx. 1-year duration.
Combines the functions of a sediment filter, that eliminates the small particles that could be in the water, along with the properties of active carbon for possible bad tastes and smells. The polypropylene pre-filtering layer extends the cartridge life. |  |
RECOMENDATION
Canaletas recommends changing the cartridge of the purification filter once a year, especially before summer, but it could be more often depending on water quality and degree of use. |
After Sales Service Canaletas After Sales Service or an authorized distributor, can offer a complete maintenance of the water cooler including the CANVAP sanitation system. What is sanitation ? |
|
|
