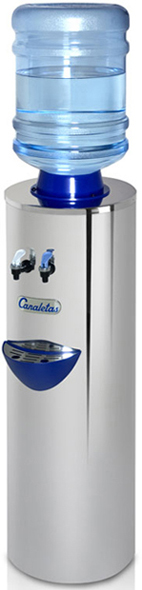

SERIES 7

Cooler ideal for any business or environment.

- Easy installation: only requires an electrical connection.
- Attractive and elegant design. Ideal for any environment, especially a medium size office.
- Approximate capacity of up to 25 - 30 users.
- Superior quality. Made entirely from A-304 stainless steel.
- Easily regulated water temperature (thermostat).
- M-72: model for hot water with a temperature of up to 85ºC.
- Compatible with the majority of mineral water bottles on the market.
- Easy to remove high capacity drip tray.
- Optional cup dispenser attachable to the water cooler or the wall.
- Optional refillable bottle.

Models

M-77
Cold tap.
Room temperature tap.

M-72
Model with hot water to prepare tea, coffee...
Cold tap.
Hot tap.

Certified to conform to EU standards that guarantees user safety.

Conform to sanitation standars

Technical data

Drawings

Accessories

COMPRESSOR POWER (HP)	1/10
COOLING POWER (W)	175
POWER CONSUMTION (W)	125
VOLTAGE 230 V 50 Hz single-phase (A)	0.7
COOLING CAPACITY (L/H)	20
CUP FILLING TIME (seconds)	6
WATER OUTPUT TEMPERATURE (ºC)(Regulated by thermostat)	4 - 11
REFRIGERANT GAS (CFC-free)	R-134a
WATER TANK CAPACITY (L)	3.5
WEIGHT (KG)	15.5

Model M-72

serie7-planom72en

Model M-77

serie7-planom77en

CUP DISPENSER

For easily accessible cups.
Vertical column design.
Made entirely of stainless steel.
Attachable to water coolers series 1, 3 and 7 or to the wall.
High capacity: 95 x 220ml cups.
With a view of the last cups, in order to replace them in time.

CUPS

220ml plastic cups.
Transparent plastic cups.
Compatible with cup dispenser.

BOTTLES

Reusable bottles.
Permitting the use of a desired brand of water and not having to depend on external suppliers.
Bottles of 12.7 or 18.9 liters.
The great advantage of the 12.7 liter is its lower weight and, due to this, its ease to place on the water cooler.
Made from polycarbonate.
